Sirai P203 20A Pressurestat

CE-cURus approved
ISO 228 G connection 1/4″M for pipe ø 4×6 mm
adjustable scale 0.5÷1.4 bar
fixed differential 0.18 (± 0.03) bar
fluid temperature max :140°C
max contact load 20A

Listed for:

LA PAVONI BOTTICELLI-EVOLUZIONE
ROCKET GIOTTO 2009, GIOTTO EVOLUZIONE 2 2017, GIOTTO EVOLUZIONE V2 2013
LA SPAZIALE S2, S9, S9-DSP

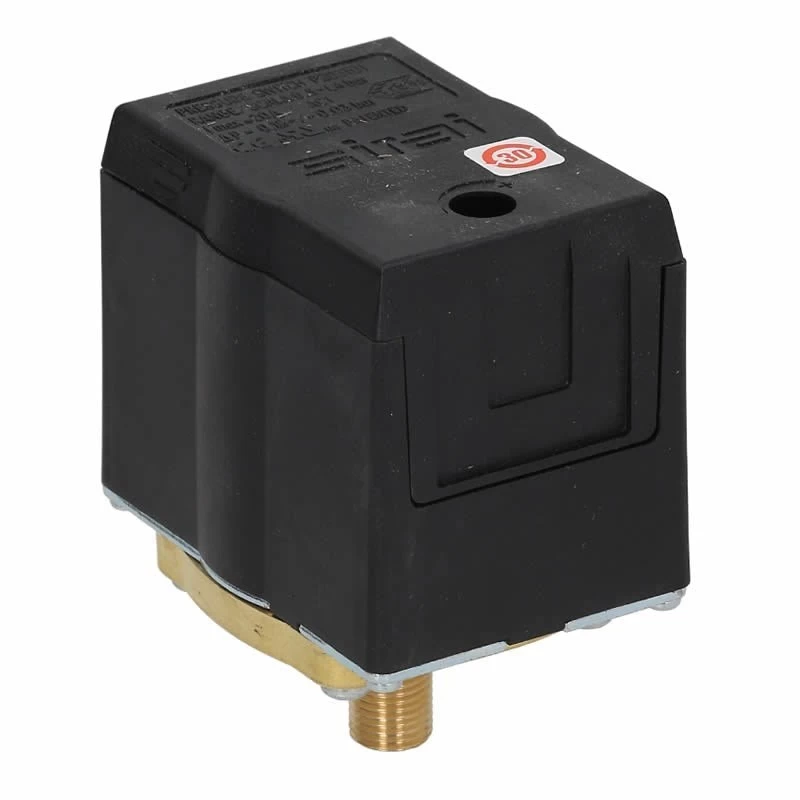

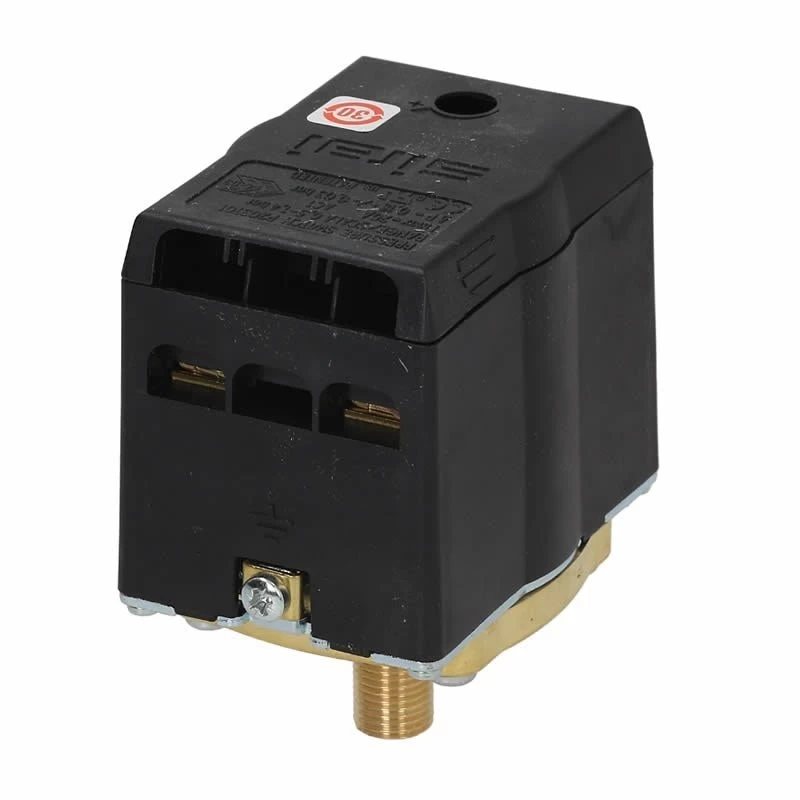

The Sirai (pronounced “SUH-RYE”) commercial pressurestat for 110~120/220~240V equipment, #P203T01. This is the part that regulates your boiler heating via a diaphragm that expands and contracts as the boiler steam pressure raises and lowers, activating the contacts and sending a signal to the heating element telling it to turn on or off. This is the less-common two-pole version, model P203T01. One of the major differences is the lower amperage. This switch can only function with 20 amps or less! Additionally, the wiring on this version is connected through the top portion of the switch. There’s a snap-on lid with two press-in tabs on the upper sides of the cover. Found in La Spaziale and Rocket espresso machines.

Factory specification sheet here.

• CE-cURus approved
• ISO 228 G connection 1/4″M for pipe ø 4 x 6 mm
• adjustable scale 0.5÷1.4 bar
• fixed differential 0.18 (± 0.03) bar
• fluid temperature max :140°C
• max contact load 20A
